原裝進口優質-德國HAKO B45手推式全自動洗地機
技術優勢及技術參數
Technical Advantage ?技術優勢

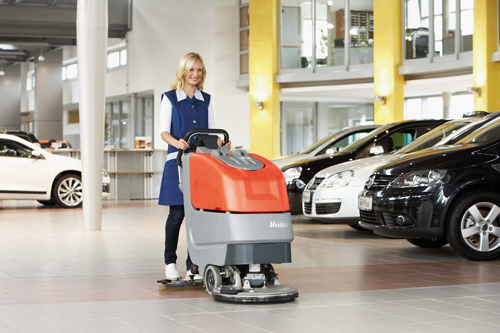

The Hakomatic B 45 CL DaytimeCleaning represents the most modern generation of compact scrubber-driers for basic and maintenance cleaning of all types of non-textile floors. Based on one basic machine the unique modular concept allows an optimum adaptation to all applications. A special battery- and charging technology allows interim charging within 20-30 minutes and guarantees continuous readiness for use.
哈高B45 CL DTC 是現代化的小型全自動洗地吸干機的代表，適用于所有非紡織地板的基本清潔和維護，在基本機器的基礎上，獨特的標準組件使得機器能應用于所有場所。特殊的電瓶和充電技術，機器可在使用停歇期間充電20-30分鐘，保證持續使用。
Thorough cleaning: front and lateral protruding brush head for thorough cleaning near and under objects.
Optimised geometric properties of brushes. Parabolic shape of squeegee provides for a maximum of dryness even when negotiating corners or on problematic floors.
清潔徹底：前部和側面突出的刷頭，用于徹底清潔物體周圍及底部。弧形吸水扒即使在邊角和難清潔地面，仍有的吸水效果。
Operational comfort: Excellent manoeuvrability with ergonomical handle concept. Control panel with easy to understand symbols and indicators showing all operational/ working conditions. Brushes can be changed at the push of a button. Dosable, splashfree emptying of dirt water.
操作舒適：人工體學設計的把手，靈活度很好。控制面板上的信號及顯示所有工作狀態的指示器，簡單易懂。只要一按按鈕即可更換刷子。傾倒污水時不會濺水。
Ecological overall conception: All brushes including Aqua-Stop water retaining system which saves both, water and cleaning agent. Exact dosage of cleaning solution. Synthetic materials are marked for recycling purposes.
生態理念：所有刷子裝有水控保水系統，可節省水和清潔液的用量。清潔液正確劑量系統。合成材料可再回收利用。
Robust quality and easy servicing: Robust steel chassis construction as basis for wheel drive, brushhead, tank and squeegee. Battery compartment easy to access. The large tank lid and the dosable drain hose enable easy cleaning of the tank area.?
堅固高質量機身，便于維護：堅固的鋼質架構，輪子驅動，刷頭，水箱和吸水扒。蓄電池箱易觸及。大的水箱蓋和可伸縮排污管便于水箱的清潔。
Safety: Key switch to guard against unauthorised operation, automatic switch-off (dead man’s switch) for brush drive and water supply. Thermal protection against brush motor overload.
安全：帶有鑰匙開關，以防他人未經許可下使用機器，控制刷子驅動和給水的自動開關。熱過載保護裝置，以防刷馬達過載。
of standard equipment: 標準機器的其他附件
Hourmeter, Battery monitoring with charge indication and automatic switch-off to protect drive batteries against damage caused by low discharge.
計時器，電瓶充電指示監測器可自動關閉，保護電瓶因電量過低而損壞
Battery system: The Hakomatic B 45 CL DaytimeCleaning is equipped with 2 pcs. 12V / 75 Ah OPTIMA-batteries in spiral cell technology (total capacity 24V / 75 Ah).
電瓶系統：B 45 CL DTC配有2塊12伏/75安的Optima電瓶
Flexible range of models: 型號
86 cm small squeegee for 51 cm working width for use in narrow aisles? 86厘米的吸水扒，工作寬度51厘米，用于狹窄的場所
Special equipment: 專用設備
CL / Comfort Line: the electronic regulation of the fresh water flow, the range of options and variable wheel drive are further differences versus the standard machine Hakomatic B 45.
CL/舒適版：電控制水流量，輪子驅動，速度可無極限調整，不同的工作寬度可供選擇。
Scrubbing and vacuum tool (“Tool”): 洗地和吸干工具
- the hand-suction tool for all basic units for thorough cleaning on areas which are difficult to reach.
手動抽吸工具適用于所有基本單元，可徹底清潔難以觸及的區域
– in combination with the tool connection a spraying- and vacuuming device can be used to spray cleaning detergents onto areas which are difficult to access.
連接噴水吸水工具，使用吸干裝置把清潔液噴到難以觸及的區域
Battery charger: 電瓶充電器
Stationary high frequency battery charger 24 V / 90 A for rapid and normal charging (automatic switch over without operators assistance). For 230 V mains operation. For easy access the battery charger plug is at the outer side of the machine.
24伏/90安得電瓶充電器，可快速充電，可連接230伏的電源線，充電器插頭在機器的外面，方便使用。
Technical data? 技術參數
Technical details |
Hakomatic |
B45 CL DTC |
B45 CL |
|
Working width 洗地寬度 |
Cm 厘米 |
?51 |
?51 |
|
Effective suction width 實際吸水寬度 |
Cm 厘米 |
86 |
86 |
|
Theoretical area performance up to 理論工作面積 |
m2/h 平米/時 |
2300 |
2300 |
|
Working speed up to 行走速度 |
km/h 公里/時 |
4,5 |
4,5 |
|
Net-running time (calculated) 凈運行時間（累計） |
Min 分 |
150 |
150 |
|
Rated voltage 額定電壓 |
V 伏 |
24 |
24 |
|
Protection class (VDE 0700) 保護級別 |
III |
III |
III |
|
Air volume, vacuum 氣流量 |
m3/h 立方米/時 |
115 |
115 |
|
Pressure 壓力 |
Mbar 毫巴 |
110 |
110 |
|
Power output, drive motor 驅動馬達輸出功率 |
W 瓦 |
180 |
180 |
|
Power output, suction motor 抽吸馬達輸出功率 |
W 瓦 |
420 |
420 |
|
Power output, plate brush motor 盤刷馬達輸出功率 |
W 瓦 |
720 |
720 |
|
Number of brushes 刷子數量 |
Units 個 |
1 |
1 |
|
Brush diameter 刷子直徑 |
Cm 厘米 |
51 |
51 |
|
Brush revolutions 刷轉速 |
Rpm 轉/分 |
235 |
235 |
|
Tank capacity clean / dirty water 清水/污水箱容量 |
Litres 公升 |
42 / 42 |
42 / 42 |
|
Dimensions: |
Length 長度 |
Cm 厘米 |
135 |
135 |
Width without (with) squeegee 不帶/帶吸水扒寬度 |
Cm 厘米 |
56 (86) |
56 (86) |
|
Height at handle 把手處高度 |
Cm |
112 |
112 |
|
Unladen weight (empty, without batteries) 空重（不帶電瓶） |
Kg 公斤 |
108 |
108 |
|
